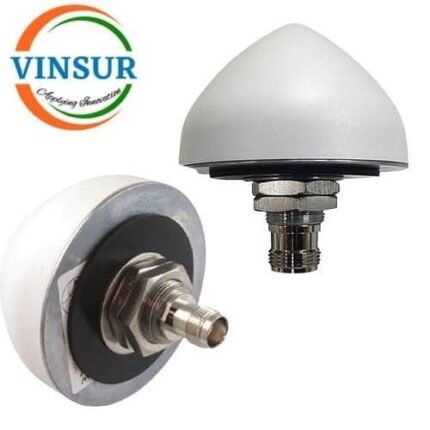

GPS OUTDOOR ANTENNA (1159-1610 MHz)
APPLICATIONS:Â Â
- Fleet Management:Â Real-time tracking for trucks, buses, and delivery vans.
- Marine Systems:Â Reliable positioning for boats and commercial vessels.
- IoT & Development:Â Compatible with Raspberry Pi, Arduino, and industrial telemetry hubs.
- Autonomous Platforms:Â Enhancing accuracy for drones (UAVs) and robots.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Frequency | 1559-1610Mhz |
| Gain | 38±3dbi |
| Output VSWR | 2 Max |
| Polarization | RHCP |
| Beam Width 3db | 110±10° |
| Axial ratio | 5db Max |
| Impedance | 50ohms |
| Power | DC 4V-6V |
| Power Consumption | 45mA max10° |
| Operating temperature | -40c°+75° |
| Connector | TNC/N Female |
| Grade | IP67 |
| Storage Temperature | -40 to +85°C |
