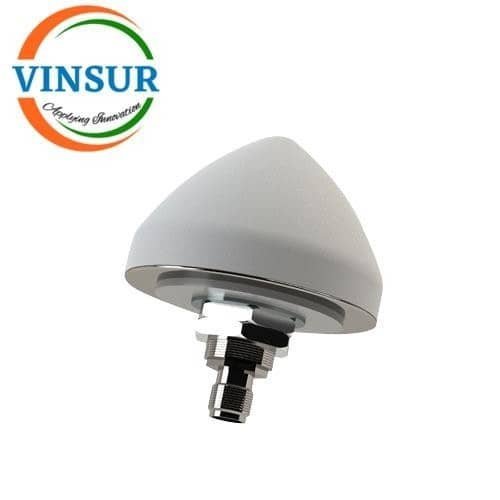

GPS Antenna (1575.42MHz)

Fleet Management: Real-time tracking for trucks, buses, and delivery vans.
Marine Systems: Reliable positioning for boats and commercial vessels.
IoT & Development: Compatible with Raspberry Pi, Arduino, and industrial telemetry hubs.
Autonomous Platforms: Enhancing accuracy for drones (UAVs) and robots.

ANTENNA OVERALL SPECIFICATION
Center Frequency	1575.42MHz
Zenith Gain	40dB } 3dB typ.
Output Impudence	50Ω
V.S.W.R	<1.5
Polarization	RHCP
Operation Voltage	2.7~10V
Current	<25 mA
Ex-band Rejection	50dB typ@CF } 50MHz
Output Connector	TNC(F)
CHARACTERISTICS SPECIFICATION
Frequency Range	1575.42 MHz
Gain	38dB } 3dB typ.
Noise Figure	≤1.5 to 1.6 dB
Output V.S.W.R	<1.5± 0.1
Operation Voltage	2.7~10 V
Current	<25 mA
CHARACTERISTICS SPECIFICATION
Frequency Range	1575.42 MHz
Center Frequency	1575.42MHz } 3MHz
Bandwidth	(10dB return loss) 50 MHz
Zenith Gain	(100*100mm ground) 5.0 dBic typ.
Polarization	R.H.C.P. Axial ratio 4dB @90° 6dB @20°
Dimension	25256mm
Beam width	~114° @ 1575MHz ~79° @ 1602MHz
