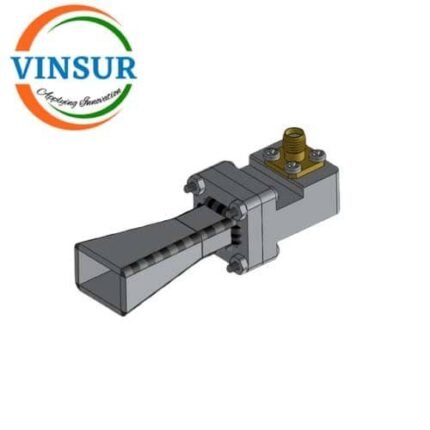

Horn Antenna(24-26GHz , 10dBi)
APPLICATIONS:Â Â
- Satellite & Deep Space: Used in ground stations and aboard satellites for long-distance communication and astronomical research.
- Radar Systems: Essential in speed enforcement cameras (police radar guns), weather monitoring, and military surveillance to track aircraft or ships.
- Short-Range Microwave Links: Used for terrestrial microwave relay links to transmit data between towers.
- Industrial Sensing: Employed in non-contact sensors for road surface inspection and automated systems like door openers.
For Orders & Info
Description
| SPECIFICATIONS | |
| Frequency Range | 24-26GHz |
| Gain | 10dBi |
| VSWR | ≤1.5 |
| Return Loss | 15dB (typ) |
| Polarization | Linear |
| Cross polarization | 50 dB |
| Connector | SMA-Female |
| Max Power | 200W |
| Material | Aluminium with powder coated |
| Size(L*W*H) | 28.6×22.2×75 |
| Weight | Up to 1Kg |
