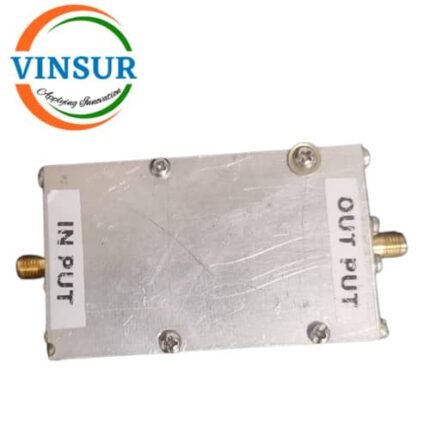

Low Noise Amplifier (LNA)1176.45 to 1602MHz
P/N : VSW250035-LNA
- Low Noise Amplifier (LNA)
- 50Ω
- SMA Female
- Max Frequency (MHz) – 1176.45 to 1602
Click Here to get Data Sheet
For Orders & Info
Description
| LNA | |
| (Frequency range) (MHz) | From 1176.45 to 1602MHz
(GPS L1:1575.42±1.023MH GPS L2:1227.6±1.023MH= GPS L5:1176.45±1.023MHz B1:1561.098±2.046MH B2:1207.52±2.046ΜΗΣ B3:1268.52±1023MH= GLONASS: G1:1602.5625 ± 4MHz G2:1246.4375-4ΜΗΣ E1:1575.42±1.023ΜΗ ЕБА: 1207.14±1.023ΜΗΣ E5B: 1176.45±1.023MHz) |
| Gain (dB) | 31±1.5 |
| Noise Figure (dB) | ≤2.0 |
| VSWR | ≤1.5 |
| Working voltage (V/DC) | 12V |
| Impedance (Ω) | 50 |
| Interface method | SMA |
| Size (mm) | 90mm*40mm*19mm(Customized Size Available) |
