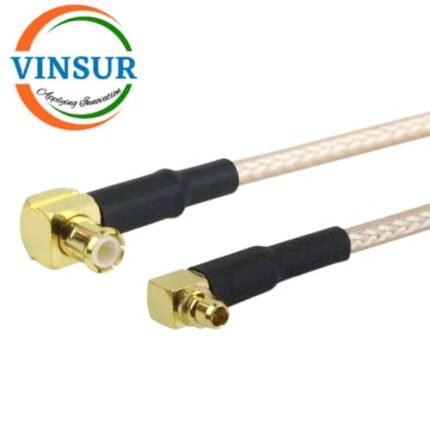

MCX Male Right Angle to MMCX Male Right Angle for RG316DS Cable of Length 560mm
P/N : VSW260069-CA
- RF Cable Assembly
- MCX Cable Assembly
- MCX to MMCX Cable Assembly
- RG316 DS Cable
- MCX Male R/A to MMCX Male R/A
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | MMCX |
| Gender | Plug(Male) |
| Orientation1 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | MCX |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Right Angle |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 4Ghz |
| Impedance | 50 Ohms |
| CABLE SPECIFICATION | |
| Cable Type | RG316 Double shielded |
| Jacket | Ø 2.92 ±0.2 |
| Frequency | 6 GHz |
| Impedance | 50Ω |
| Length | 560mm |
| Temp. Range | -25°C to +85°C |
