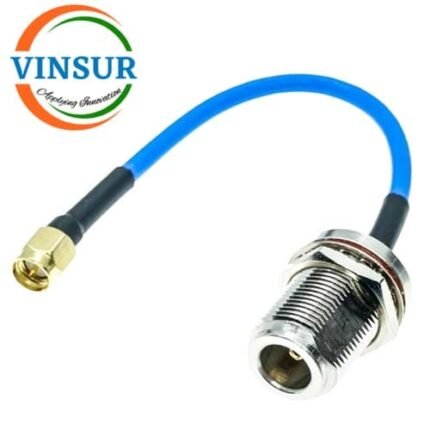

N Female Bulkhead Straight to SMA Male Straight for RG402 Cable of Length 1M
P/N : VSW260192-CA
- RF Cable Assembly
- N-Type Cable Assembly
- N-Type to SMA Cable Assembly
- RG402 Cable
- N Female to SMA Male
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | N |
| Orientation 2 (body) | Jack(Female) |
| Gender 2 | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulkhead |
| Impedance | 50 Ω |
| Frequency | DC-18GHz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG402(.141) |
| Cable Diameter | 4.10 mm / 0.161 in |
| Suitable for frequencies | Up to 20 GHz |
| Cable Length | 1 Meter |
| Weight | 52 kg/km |
| Impedance | 50Ω |
| Temperature Rating | -40°C ~ +85°C |
