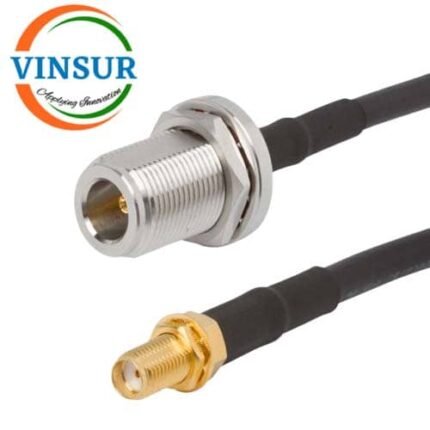

N Female Straight Bulkhead to SMA Female Straight Bulkhead for RG-58 Cable of Length 1M
P/N : VSW250094-CA
- RF Cable Assembly
- N-Type Cable Assembly
- N-Type to SMA Cable Assembly
- RG58 Cable
- N Female to SMA Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | N |
| Gender | Jack(Female) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulkhead |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Feature | Bulkhead |
| Frequency | DC to 3GHz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG58 |
| Cable Diameter | 4.95mm |
| Frequency Range | 5GHz |
| Impedance | 50 Ω |
| Length | 1Meter |
| Temperature Range | -40°C to +85°C |
