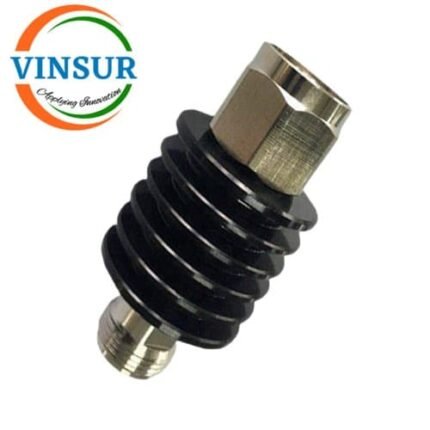

RF Coaxial Attenuator (10W DC-8GHz N Male to N Female)
P/N : VSW-ATT10-XX-8-NMF
- RF Fixed Attenuator
- 50Ω
- N Male to Female
- 10WÂ
- Max Frequency (GHz) – DC-8
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | ||
| Attenuation(dB) | 20 | 40 |
| Accuracy(dB) | ±0.6 | ±0.8 |
| Freq(MHz) | DC-8GHz | |
| VSWR | ≤1.25 | |
| Power Rating(W) | 10W@25℃ (average) | |
| Impedance | 50 ohm | |
| Connector | N Male to N Female | |
| Color | Black | |
| Operating Tem(℃) | -35°C to +65°C | |
| Dimension(mm) | See Drawing | |
