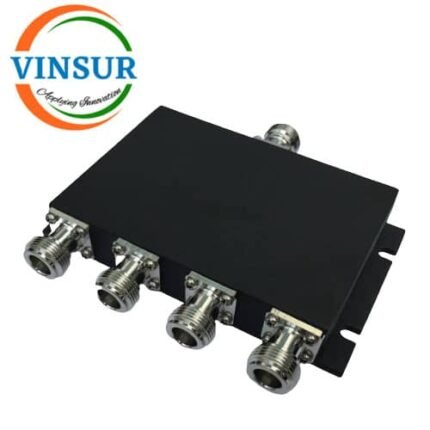

RF Power Divider (370-6000MHz 30W N Female)
P/N : VSW-30W-RPD
- RF Power Divider
- 4-Way
- N Female
- Impedance – 50Ω
- Frequency(MHz)Â -370-6000
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Frequency Range | 370～6000 MHz |
| Insertion Loss | ≤3dB（Excluding theoretical loss 3DB） |
| VSWR | ≤1.5 : 1 |
| Isolation | ≥18dB |
| Amplitude Balance | ≤±1.5dB |
| Phase | Balance |
| Impedance | 50 OHMS |
| Connectors | N-K |
| Power Handling | CW：30 Watt |
| Operation Temperature | -35℃ ~ +65℃ |
| Storage Temperature | -40℃ ~ +80℃ |
| Dimensions | As below ↓(mm) |
