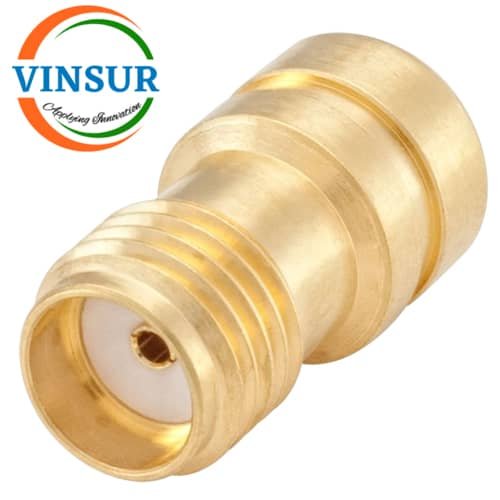

RF Termination Load (1W 18GHz SMA Female)
P/N : VSW-1W-18G1-SMA Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
- RF Termination Load
- 1W
- SMA Female
- Frequency(GHz) – DC-18
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Gender | Jack(Female) |
| Impedance (Ohms) | 50 |
| Orientation | Straight |
| Power Handling | 1watt @25°C |
| Mating Cycles | ≥100 |
| Return Loss | ≥20 dB |
| Frequency | DC-18GHz |
| Temp (Max Degrees Celsius) | +85°C |
| Temp (Min Degrees Celsius) | -40°C |
