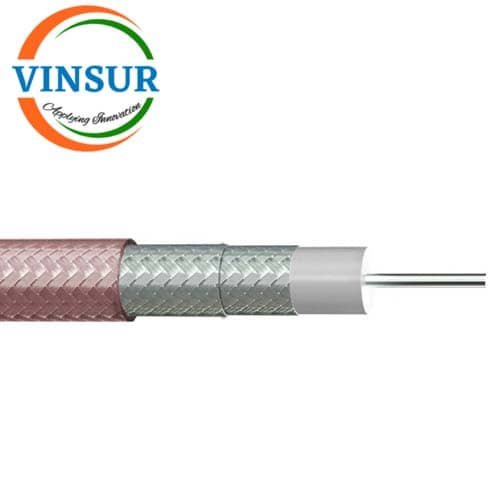

RG-400 Flutef Cable
P/N : VSW-RG400-FTC
- RG-400 Flutef Cable
- 50Ω
- Max Frequency (GHz) -DC to 12.4GHz
Applications:
- Aerospace Systems
- Military & Defense
- Communications
- RF Equipment
Click Here to get Data Sheet
For Orders & Info
Description
| CABLE SPECIFICATION | |
| Approx. LBS/MFT | 50.00 |
| Cond. Material | Silver-Coated Copper |
| Conductor Stranding | 19/.0080 |
| Dielectric (in) | 0.116 |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Jacket Material | Fluorinated Ethylene Propylene (FEP) |
| M17 Test Frequency | 12.4 GHz swept |
| Max. Temp | 200C |
| Mil-Spec | M17 |
| Min. Temp | -55C |
| No. of Strands | 19 |
| Nom. Cap. (pF/ft) | 29.4 |
| Nom. Dia. of Cond. | 0.0384 |
| Nom. Imp. | 50 |
| Nom. O.D. (in) | 0.1950 |
| Shield | 2 Overall Shields |
| Shield Material | 36 AWG Silver-Coated Copper Braid Shields |
| Strand Size | 0.0080 |
| Vel. of Prop. | 69.5 |
| Voltage | 1900 |
