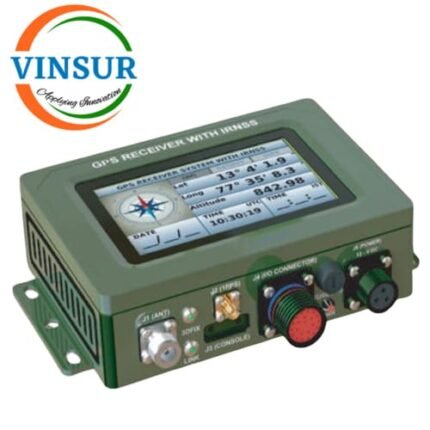

Rugged GNSS Receiver With Display
P/N : VSW-RGNSS-R1
Key Features :
- Multi GNSS receiver supporting GPS/GLONASS/Galileo/ BeiDou/IRNSS/QZSS
- 10/100/1000 Ethernet Interface
- Low power consumption
- Concurrent GNSS Engine
- 5’’ Rugged Sun Readable Display with capacitive touch
Click Here to get Data Sheet
For Orders & Info
Description
| MECHANICAL SPECIFICATION | |
| Dimensions | 170 x 120 x 50 |
| Weight | <1.5 Kgs |
| Mounting Method | Flange Mount |
| Communication | 3m Standard |
| Cable Length | (5m & 10m On Request) |
| Mounting Method | Flange Mount |
| Cable Type | Shielded CAT6 PTFE Cable |
| Connector | MIL-STD Connector |
| Enclosure | AL 6061-T6, weatherproof IP68K |
| Colour | Mil Green |
| ELECTRICAL SPECIFICATION | |
| Voltages | 9 to 36V |
| Current | 650 mA during acquisition
500 mA operating Standby mode < 1mA |
| INTERFACE | |
| OUTPUT | ETHERNET |
| 1PPS | 1 No |
| USB | 1 No |
| ENVIRONMENTAL SPECIFICATION | |
| Operating Temperature | -20C to +70C |
| Storage Temperature | -40C to +85C |
| Weather proof | IP68K |
| Max .Altitude | < 18,000 m |
| Max. Velocity | < 500 m/s |
