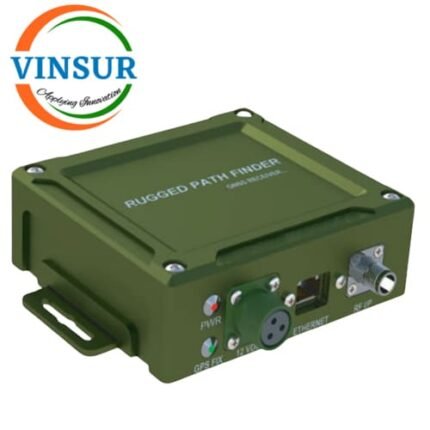

Rugged Path Finder GNSS Receiver
P/N : VSW-RGNSS-R3
Key Features :
- Multi GNSS receiver supporting GPS/GLONASS/Galileo/ BeiDou/IRNSS/QZSS
- 10/100/1000 Ethernet Interface
- Low power consumption
- Concurrent GNSS Engine
Click Here to get Data Sheet
For Orders & Info
Description
| MECHANICAL SPECIFICATIONS | |
| Dimensions | 125 X 110 X 42mm |
| Weight | <700 gms |
| Mounting Method | Flange Mount |
| Cable Length | 5m Standard(15m & 25m special order) |
| Cable Type | Shielded CAT6 PTFE Cable |
| Connector | RJ45 Standard (Customized Connectors in request) |
| Enclosure | Industrial grade, weatherproof IP68K |
| ELECTRICAL SPECIFICATION | |
| Voltages | 9-36V DC Continuous |
| Current | 120 mA during acquisition 80 mA operating, Standby mode < 1mA |
| ENVIRONMENTAL SPECIFICATION | |
| Operating Temperature | -40C to +85C |
| Storage Temperature. | -45C to +85C |
| Weatherproof | IP69K |
| Max .Altitude | < 18,000 m |
| Max. Velocity | < 500 m/s |
| GNSS RECEIVER | |
| FREQUENCY | GPS/QZSS: L1 C/A |
| GLONASS: L1OF | |
| BEIDOU: B1I GALILEO: E1 I | |
| Channels | Support 135 channels |
| Update rate | 1Hz default, up to 10Hz |
| Axial Ratio | < 1 dB typical. | |
| Acquisition Time | Hot start (Open Sky) | 1s (typical) |
| Cold Start (Open Sky) | 28s (typical) without AGPS | |
| Position Accuracy | AUTONOMOUS:2.5m (CEP) | |
| PPS signal accuracy | TYPICAL ± 1ms for PPS | |
