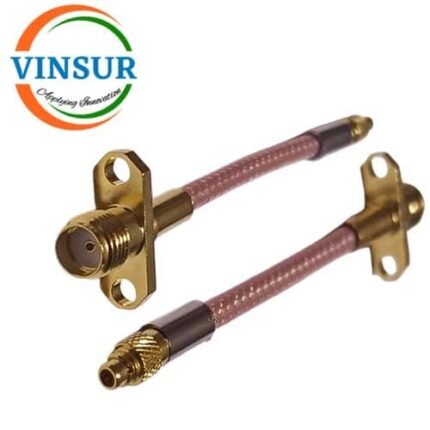

SMA Female Straight 2 Hole Flange to MMCX Male Straight for RG316 Cable of Length 75mm
P/N : VSW250080-CA
- RF Cable Assembly
- MMCX Cable Assembly
- MMCX to SMA Cable Assembly
- RG316 Cable
- MMCX Male to SMA Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | MMCX |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Feature | 2 Hole Flange |
| Frequency | DC to 6Ghz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | For RG316 |
| Cable Diameter | 2.49 ±0.1 |
| Impedance | 50Ω ±2Ω |
| Frequency | DC to 6Ghz |
| Length | 75MM |
| Operating Temperature | -55°C to +200°C |
