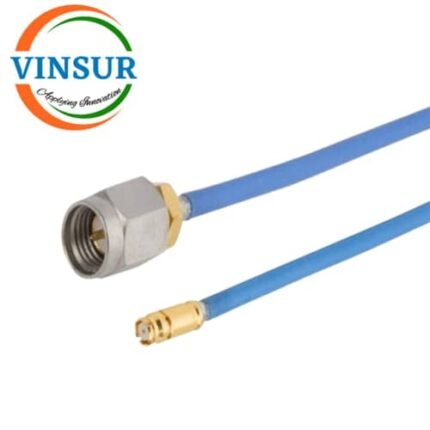

SMA Male Straight to SMP Female Straight for RG405 Semi-flex Cable of Length 6″ Inch
P/N : VSW250125-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMP Cable Assembly
- RG405 Cable
- SMA Male to SMP Female
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| RF Series 2 | SMP |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Frequency | DC to 18Ghz |
| VSWR | ≤1.2 |
| Impedance | 50 Ω |
| CABLE SPECIFICATION | |
| Cable type | RG405 Semi-flex |
| Cut-off Frequency | Up to 18 GHz |
| Cable Diameter | 2.6 mm / 0.102 in |
| Impedance | 50 Ω |
| Length | 6” Inch |
| Temperature Range | -40 / +165°C |
