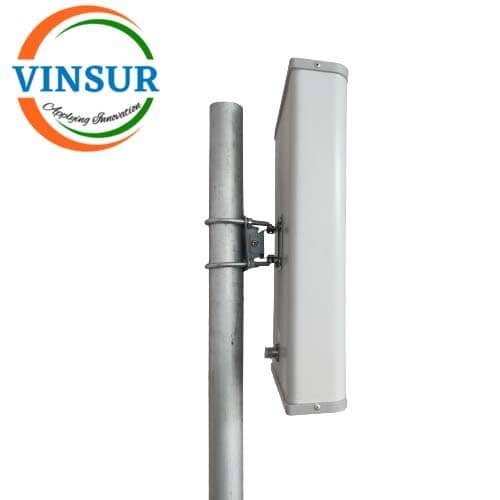

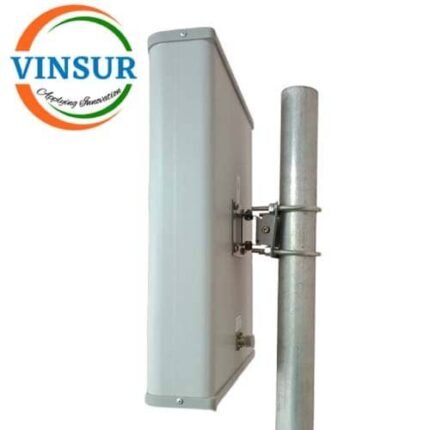

RFID Reader Linear Polarization Antenna(860-960MHz , 12dBi)
- Chain logistics (tracking,, sorting)
- Retail inventory management
- Manufacturing process control
- Healthcare asset tracking
- Secure access control
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Frequency range | 860 – 960MHz |
| GAIN, typ. | 12dBi |
| VSWR, max. | 1.5:1 |
| Polarization | Linear (Vertical or Horizontal) |
| 3 dB Beam width | 70°(typ) |
| F/B Ratio | -11 (max) |
| Lighting Protection | DC Grounded |
| Transmit power | 32dBm |
| Input power, max. | 10 Watt |
| MECHANICAL SPECIFICATION | |
| Dimensions (HxWxD) | 400 x 270 x 85 mm |
| Weight | 0.5 kg. |
| Connector | N-Type, Female |
| Back Plane | Aluminum protected through chemical passivation |
| Radom | ABS |
| Mount | Wall/Pole |
