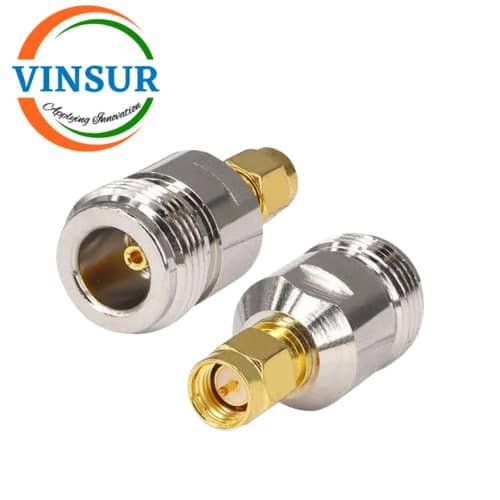

VSW-41120411-ADP — RF ADAPTER – 50 OHMS, N-TYPE FEMALE TO SMA MALE STRAIGHT ADAPTERS
P/N :-VSW-41120411-ADP
- RF Adapter
- N-Type Adapters
- N-Type to SMA Adapters
- Female to Male
-  50Ω
- Max Frequency (GHz) -DC~6GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Gold/Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Gold/Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 6GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +85°C |
