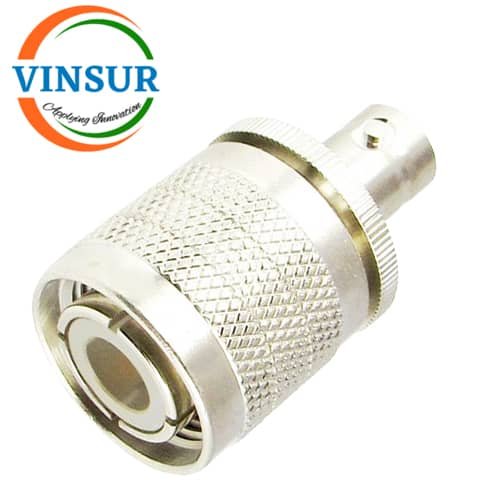

VSW-41R1103210 — RF ADAPTER – 50 OHM HN MALE STRAIGHT TO BNC FEMALE STRAIGHT ADAPTERS
P/N :-VSW-41R1103210
- RF Adapter
- BNC Adapters
- BNC to HN-Type Adapters
- Female to Male
- 50Ω
- Max Frequency (GHz) -DC~ 4GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | HN-Type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | BNC |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR | 1.20 Max |
| Min. Temp. (Celsius) | -60°C |
| Max. Temp. (Celsius) | +100°C |
