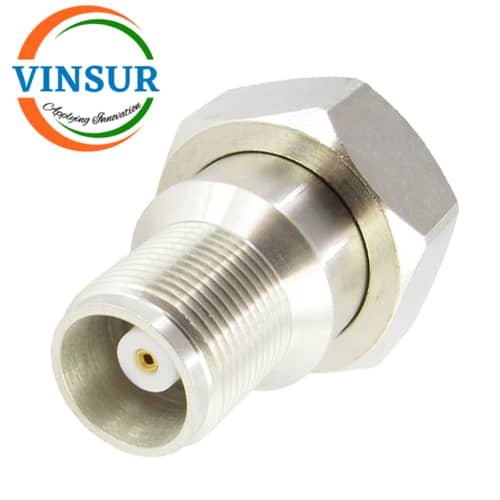

VSW-41R210F110 — RF ADAPTER – 50 OHMS HN FEMALE STRAIGHT TO 7-16 DIN MALE STRAIGHT ADAPTERS
P/N :- VSW-41R210F110
- RF Adapter
- HN -Type Adapters
- HN-Type to 7-16 Adapters
- Female to Male
- 50Ω
- Max Frequency (GHz) -DC~ 4GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | HN-Type |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | N-Type |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 4GHz |
| VSWR | 1.25 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
