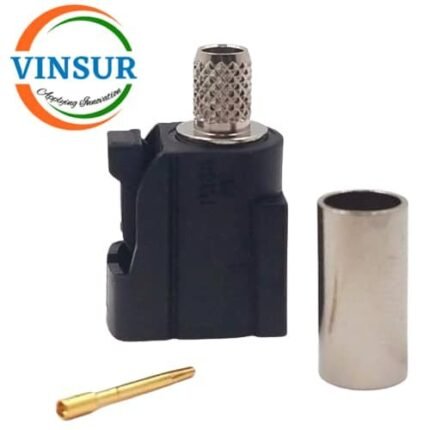

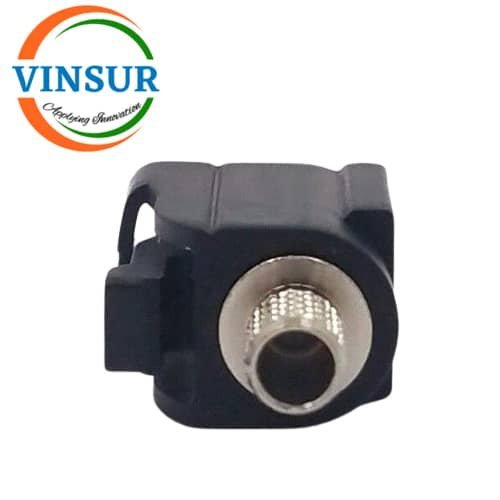

VSW-FAKRA-FS-58A — RF CONNECTOR – 50 OHMS FAKRA SMB FEMALE STRAIGHT CRIMP TYPE FOR RG 58 CABLE(Black)
Applications:
- Wireless remote Control
- Sensor Connections
- Infotainment
- Vehicle Controls
- Compute Modules
- GPS
- Bluetooth
- Satellite Radio & AM/FM Radio
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50Ω |
| Body Finish | Nickel |
| Body Material | Zinc Die cast |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Insulator Material | PTFE |
| Cable Type | RG58 |
| Max Frequency (GHz) | DC to 4GHz |
| VSWR | 1.6 (-13dB) Max |
| Insertion Loss | 0.45 dB |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
