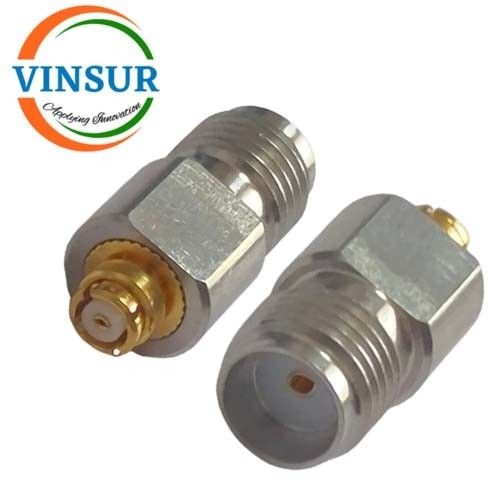

VSW260002-AD — RF ADAPTER – 50 OHMS SMP FEMALE STRAIGHT TO SMA FEMALE STRAIGHT ADAPTER
P/N :-VSW260002-AD
- RF Adapter
- SMP Adapters
- SMP to SMA Adapters
- Female to Female
-  50Ω
- Max Frequency (GHz) -DC~ 18GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | SMP |
| Gender1 | Jack (Female) |
| Orientation | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack (Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 18 GHz |
| VSWR(Max) | ≤1.2 |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +165°C |
