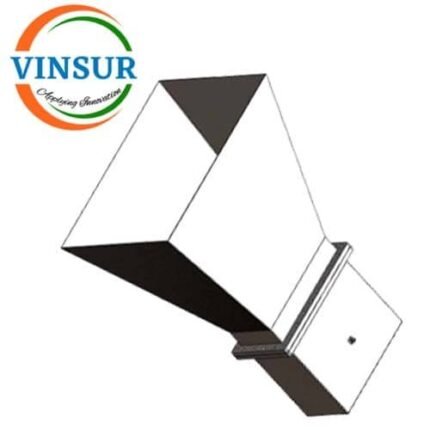

Wave Guide Horn Antenna(350-530MHz , 10Dbi)
APPLICATIONS:Â Â
- Satellite & Deep Space: Used in ground stations and aboard satellites for long-distance communication and astronomical research.
- Radar Systems: Essential in speed enforcement cameras (police radar guns), weather monitoring, and military surveillance to track aircraft or ships.
- Short-Range Microwave Links: Used for terrestrial microwave relay links to transmit data between towers.
- Industrial Sensing: Employed in non-contact sensors for road surface inspection and automated systems like door openers.
For Orders & Info
Description
| SPECIFICATIONS | |
| Frequency Range | 350 MHz – 530 MHz |
| Gain | 10 dBi |
| H-plane Beam width (-3dB) | 54° |
| E-plane Beam width (-3dB) | 54° |
| Maximum Power Handling | 3000 W |
| Waveguide Flange | UDR |
| Connector | N-Female |
| MECHANICAL & ENVIRONMENTAL SPECIFICATIONS | |
| Dimensions (W x H x L) | 710 x 970 x 1443 mm |
| Antenna Weight | Up to 30 kg |
| Material | High-Grade Aluminium |
| Operating Environment | Indoor / Laboratory / Field Test |
