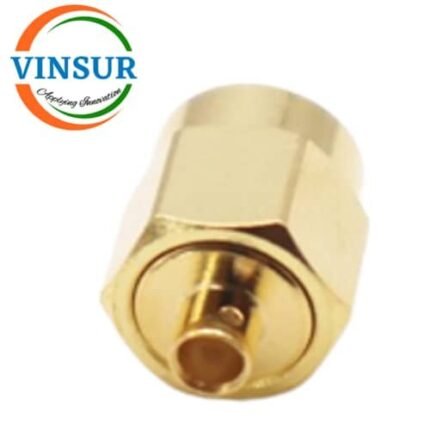

1151193C-55– RF CONNECTOR – 50OHMS , SMA MALE , STRAIGHT , SOLDER TYPE , FOR RG405(.86) CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Brass, Gold plating |
| Body Material | Gold plating |
| Body Finish | Brass, Gold plating |
| VSWR | 1.20@ 18GHz |
| Insulator Material | PTFE |
| Cable Type | RG405(0.86) |
| Max Frequency (GHz) | DC to 18 GHz |
| Polarity | Standard |
| Thread Direction | -55°C to +105°C |
| Insulation Resistance | ≥5000MΩ |
| Dielectric withstand voltage | 1000V |
