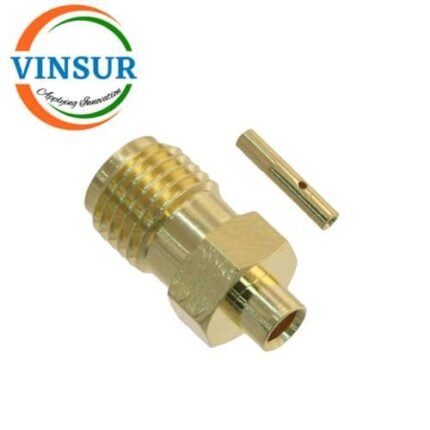

1152103C — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT, SOLDER TYPE , RG405(0.86)CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Centre Conductor | Brass, Gold plating |
| Body Material | Gold plating |
| Coupling Nut | Brass, Gold plating |
| VSWR | ≤1.3 |
| Insulator Material | PTFE |
| Cable Type | RG405(0.86) |
| Max Frequency (GHz) | DC to 6GHz |
| Polarity | Standard |
| Thread Direction | Standard |
| Contact Termination | Solder |
| Temp (Max Degrees Celsius) | 165° |
| Temp (Min Degrees Celsius) | -65° |
