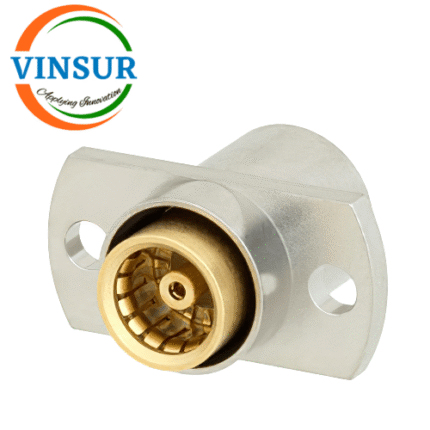

11G2133C-30 — RF CONNECTOR – 50OHMS , BMA FEMALE , STRAIGHT , 2 HOLE FLANGE , FOR RG405 CABLE
Applications:
- Telecommunications:Â Base stations, rack-mount servers, network infrastructure, fiber optic connections in compact outdoor units (OSP/BMA).
- Military & Defense:Â Radar systems (airborne/ground), satellite communications, navigation, microwave modules, ensuring high performance in harsh conditions.
- Aerospace: Aircraft commas, radar, navigation systems requiring high vibration/temperature resistance.
- Test & Measurement:Â Connecting signal generators, spectrum analyzers for precise microwave signal analysis.
- Data/Computing:Â Modular I/O hubs, high-density servers.
- Medical Devices:Â High-frequency applications within medical equipment.Â
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Stainless Steel |
| Body Material | Beryllium copper |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | RG405 |
| VSWR | 1:27:1 |
| Mounting Feature | 2-hole flange |
| Max Frequency (GHz) | DC to 22Ghz |
| Polarity | Standard |
| Thread Direction | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
