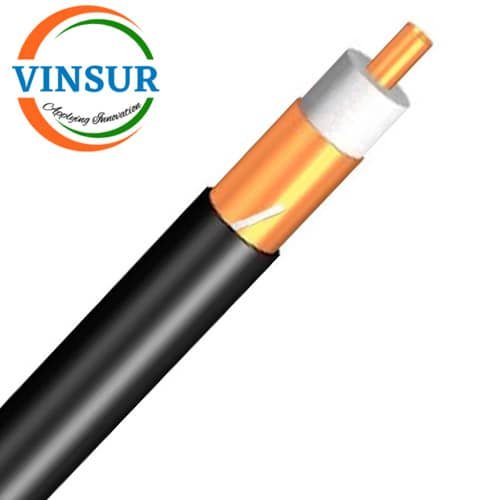

7/8″ Radiation Leaky Cable
P/N : VSW-7/8-RLC
- 7/8″ Radiation Leaky Cable
- 50Ω
- Max Frequency (GHz) -DC to 3GHz
Applications:
- Transportation Tunnels
- Underground Mines
- In-Building DAS
Click Here to get Data Sheet
For Orders & Info
Description
| CABLE CONSTRUCTION Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â MATERIAL Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â MM(IN) | ||
| Inner conductor | Copper Tube | 9.00 mm |
| Dielectric | Physical Foam Polyethylene | 22.30 mm |
| Outer conductor | Corrugated Copper Tube | 24.90 mm |
| Sheath | Low Smoke Halogen-free Fire-retardant | 27.50 mm |
| ELECTRICAL CHARACTERISTICS | ||
| Characteristic Impedance | 50±2Ω | Nominal Value |
| Transmission Rate | 88% | Nominal Value |
| Capacity | 76pF/m | Nominal Value |
| Insulation Resistance | 5000MΩ·km | DC 500V, 1Min, Minimum. |
| Insulation Dielectric Strength | 10000V | Continue 1Min, DC |
| Sheath Spark Test | 8000V | AC, Valid Value |
| DC-resistance | 1.50Ω/km | Inner conductor Max. |
| DC-resistance | 3.50Ω/km | Outer conductor Max. |
| Single Bending Radius | 250mm | Min. |
| Repeated Bending Radius | 300mm | Min. |
| Number of Bends | 15 times | Min. |
| Tensile resistance | 1300N | Max |
