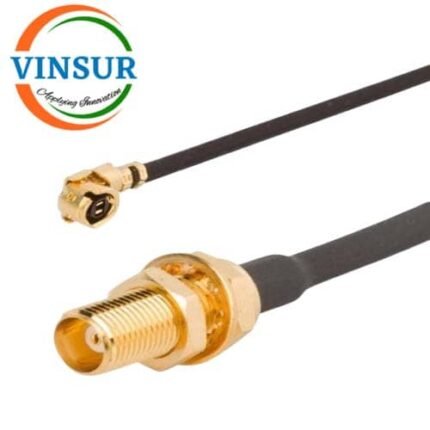

AMC Male Right Angle to MMCX Female Straight bulk head for RG 1.13 Cable of Length 250mm
P/N : VSW250070-CA
- RF Cable Assembly
- MMCX Cable Assembly
- MMCX to AMC Cable Assembly
- RG1.13 Cable
- MMCX Female to AMC Male R/A
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | ||
| RF Series 1 | MMCX | |
| Gender | Jack(Female) | |
| Orientation1 (body) | Straight | |
| Body Finish | Gold | |
| Body Material | Brass | |
| Contact Finish | Gold | |
| Contact Material | Brass | |
| Mounting feature | Bulkhead | |
| RF Series 2 | AMC | |
| Gender 2 | Plug (Male) | |
| Orientation 2 (body) | Straight | |
| Body Finish | Gold | |
| Body Material | Brass | |
| Contact Finish | Gold | |
| Contact Material | Brass | |
| Frequency | DC to 3Ghz | |
| Impedance | 50 Ohms | |
| VSWR | ≤1.2 | |
| Temp (Max Degrees Celsius) | +85 | |
| Temp (Min Degrees Celsius) | -40 | |
| CABLE SPECIFICATION | ||
| Cable Type | For RG1.13 | |
| Jacket | 1.13mm | |
| Impedance | 50Ω | |
| Frequency | DC to 6Ghz | |
| Length | 250mm | |
| Operating Temperature | -40°C ~ +85°C | |
