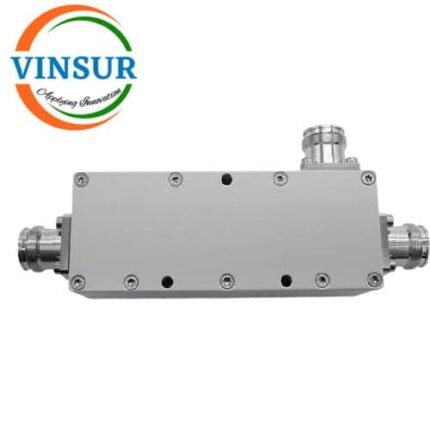

Directional Coupler (500-6000MHz, N Female, 40dB)
P/N : VSW-DC-40-5600-NF
- RF Directional Coupler
- 50Ω
- NÂ Female
- Coupling(dB) – 40dB
- Frequency (MHz) – 500-6000MHz
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Coupling | 40dB |
| Freq(MHz) | 500-6000MHz |
| Accuracy(dB) | ±5@600-6000MHz |
| Insertion Loss(dB) | ≤0.4 |
| Isolation | ≧48 |
| VSWR | ≤1.50 |
| PIM Rating | -153dBc@2x43dBm(698-2700MHz) |
| Power Rating(W) | 200W |
| Impedance | 50 Ω |
| Connector | N Female |
| Colour | Black |
| Operating Temperature(℃) | -25°C to +75°C |
| Application | IP60 |
