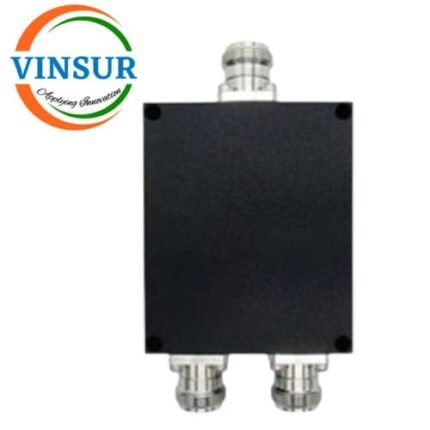

RF Duplexer (VHF UHF)
P/N : VSW-DP-1352-NF
- RF Duplexer
- 50Ω
- VHF UHF
- N Female
- Frequency (MHz) – 136-174 & 380-520
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | ||
| Port Name | CH1 | CH2 |
| Frequency(MHz) | 136-174 | 380-520 |
| VSWR | ≤1.30 | |
| Insertion Loss(dB) | ≤0.7 | |
| Isolation(dB) | ≥50 | |
| Impedance | 50 ohm | |
| Power Rating(W) | 50W (average Per Port) | |
| Operating Temperature (deg) | -20～+60℃ | |
| Colour | Black | |
| Connector | N-female | |
| Relative Humidity | 5%-95% | |
| Weight(kg) | 0.38KG | |
