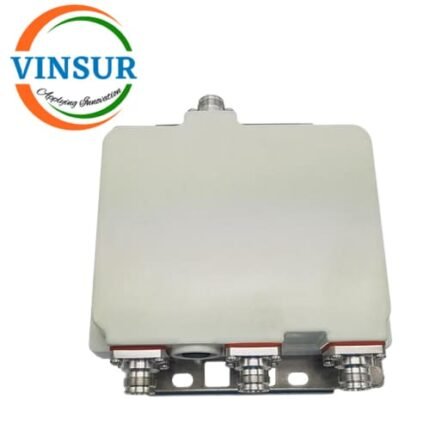

RF Tridplexer (6824-960 1710-2170 2300-2400MHz N Female)
P/N : VSW-NF-200WTIP
- RF Tridplexer
- 50Ω
- N Female
- Frequency (MHz) – 6824-960 1710-2170 2300-2400
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL SPECIFICATIONS | |||
| Frequency                                              | CH1: 824 to 960MHz | CH2:1710 to 2170 MHz | CH3: 2300 to 2400MHz |
| VSWR                         | ≤1.25 | ||
| Insertion loss:            | ≤0.35dB | ||
| Port to Port rejection | ≥50B | ||
| Input Power Rating    | 200W/Avg | 1000W/Peak | |
| Intermodulation        | -150dBc @ | 2 x 20 W | |
| Impedance                 | 50Ω | ||
| ENVIRONMENTAL SPECIFICATIONS | |||
| Operating temperature range     | -45°C to +65°C | ||
| Relative humidity                         | 5% – 95% | ||
| Applications                               | IP67 | ||
| MECHANICAL SPECIFICATIONS | |||
| Connectors type           | N Female/Din Female | ||
| Weight(kg)Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â | 2.20 | ||
| Outer Dimension(mm) | 168*146*51 | ||
