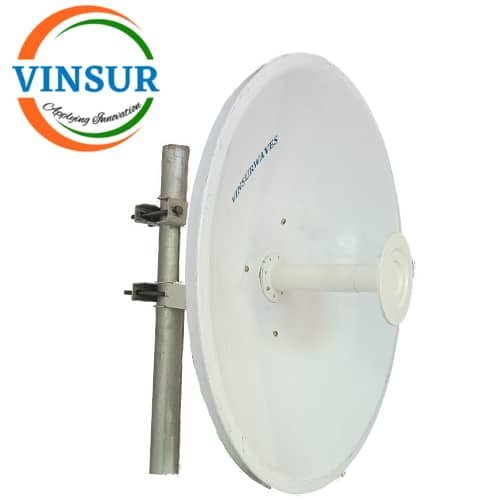

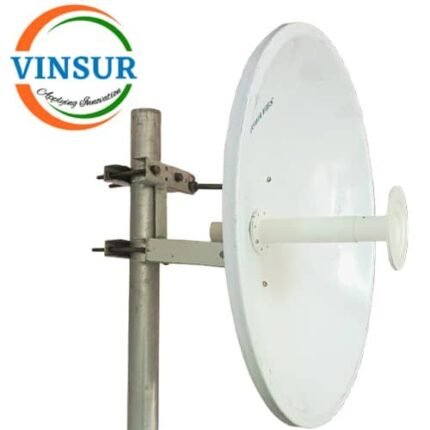

Dish Antenna – 2 x 18dBi Gain 5.1-6.4GHz
APPLICATIONS:Â Â
- Television Broadcasting: The most common consumer application is for Direct-to-Home (DTH) satellite TV.
- Satellite Internet: Used in remote or rural areas where traditional cable or fiber is unavailable.
- Point-to-Point Communication: Used for terrestrial microwave links that carry telephone calls and data between fixed locations, often visible on telecommunication towers.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | ||
| Frequency Range | 5.1-6.4GHz | |
| Gain | 18dBi | |
| F/B Ratio (dB) | ≥30-32 | |
| Polarization | Linear V & H | |
| Horizontal Beam width (°) | 9±0.5 | |
| Vertical Beam width (°) | 9±0.5 | |
| VSWR | 1.5 : 1 (Typ) | |
| Isolation (dB) | >30 | |
| Nominal Impedance (Ω) | 50 | |
| Maximum Power (W) | 50 | |
| Lightning Protection | DC Ground | |
| Cross Poln. (dB) | >20 | |
| MECHANICAL SPECIFICATIONS | ||
| Connector | 2 x N(F) Feed will N(F) terminated connector | |
| Dimension (mm) | Ø 360 to 400 | |
| Antenna Material | Aluminium Alloy | |
| Gross Weight (Kg) | <3.5 | |
| Packing Dimension (inch) | 20 X 20 X 8 | |
| Mounting Hardware | Galvanized & Powder Coated | |
| Mounting Style | Pole | |
| Mounting Pole Diameter(inch) | 2 | |
| Mounting Adjustment | H Plane ± 180° | V Plane ± 15° |
Â
| ENVIRONMENTAL PARAMETERS | |
| Temperature Range (°C) | ( – ) 40 to ( + ) 70 |
| Wind Speed (km/hr) | 200 |
| Humidity | 95% No Condensation |
