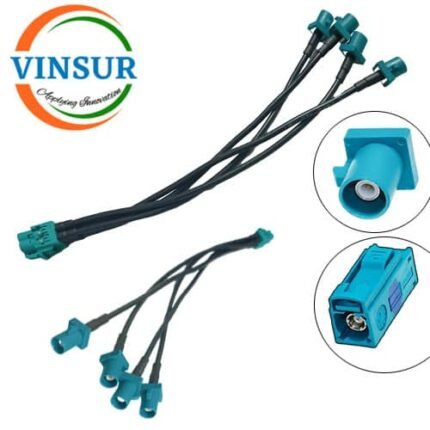

Fakra SMB Male Straight For RG174(Water Blue Color Z-Code) 4-Pin Cable Of Length 20cm
P/N : VSW-61F10F203-705MM-C
- RF Cable Assembly
- FAKRA Cable Assembly
- FAKRA to FAKRAÂ
- RG174 Cable
- Z-Key Code
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | ||
| RF Series 1 | FAKRA | |
| Gender | Plug(Male) | |
| Orientation1 (body) | Straight | |
| RF Series 2 | FAKRA | |
| Gender 2 | Jack(Female) | |
| Orientation 2 (body) | Straight | |
| Frequency | DC to 6Ghz | |
| Impedance | 50 Ohms | |
| Cable Type | For RG174 | |
| Power Handling | 95 W Max @ 1 GHz @ 25ºC | |
| Voltage Rating | 335 Volts RMS Continuous | |
| Withstanding Voltage | ≤800 VRMS | |
| Insulation Resistance | ≥1000mΩ | |
| CABLE SPECIFICATION | ||
| Cable Type | RG174 | |
| Cable Diameter | 2.7mm | |
| Max Frequency | 3 GHz | |
| Impedance | 50Ω | |
| Length | 20cm | |
| Temperature Rating | -40°C ~ +75°C | |
