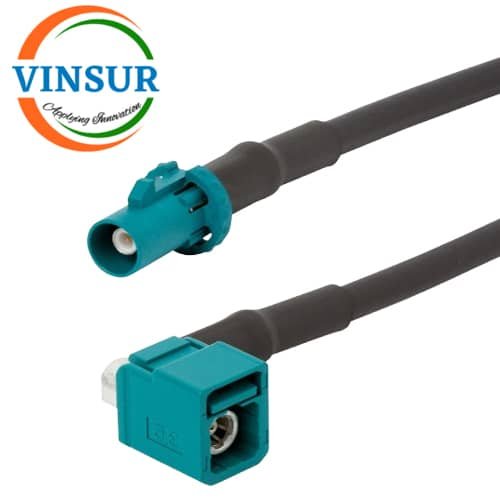

Fakra SMB Male Strsight to Fakra SMB Female Right Aangle for RG58 Cable of Length 12″ Inch
P/N : VSW250054-CA
- RF Cable Assembly
- FAKRA Cable Assembly
- FAKRA to FAKRA
- RG58 Cable
- Z-Key Code
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | FAKRA SMB |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| RF Series 2 | FAKRA SMB |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Right Angle |
| FAKRA Key code | Z – Water Blue |
| Frequency | DC to 3Ghz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 Max |
| CABLE SPECIFICATION | |
| Cable Type | RG58 |
| Cable Diameter | 4.95mm ± 0.20 |
| Max Frequency | 3 GHz |
| Weight | 0.040 Kg/m |
| Impedance | 50Ω |
| Cable Length | 12”( 30.48cm) |
| Temperature Rating | -40°C ~ +85°C |
