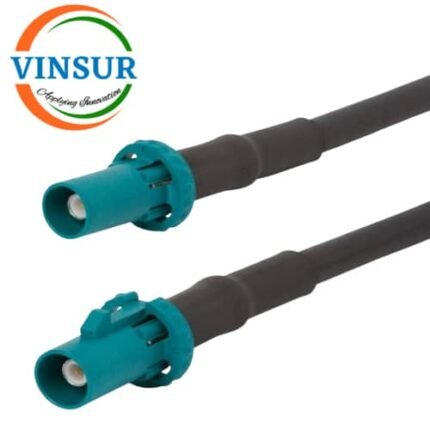

Fakra SMB Male Strsight to Fakra SMB Male Strsight for RG58 Cable of Length 12″ Inch
P/N : VSW250055-CA
- RF Cable Assembly
- FAKRA Cable Assembly
- FAKRA to FAKRA
- RG58 Cable
- Z-Key Code
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |||
| RF Series 1 | FAKRA SMB | ||
| Gender | Plug(Male) | ||
| Orientation1 (body) | Straight | ||
| RF Series 2 | FAKRA SMB | ||
| Gender 2 | Plug(Male) | ||
| Orientation 2 (body) | Straight | ||
| FAKRA Key code | Z – Water Blue | ||
| Frequency | DC to 3Ghz | ||
| Impedance | 50 Ω | ||
| VSWR | ≤1.2 Max | ||
| CABLE SPECIFICATION | |||
| Cable Type | RG58 | ||
| Cable Diameter | 4.95mm ± 0.20 | ||
| Max Frequency | 3 GHz | ||
| Weight | 0.040 Kg/m | ||
| Impedance | 50Ω | ||
| Cable Length | 12”( 30.48cm) | ||
| Temperature Rating | -40°C ~ +85°C | ||
