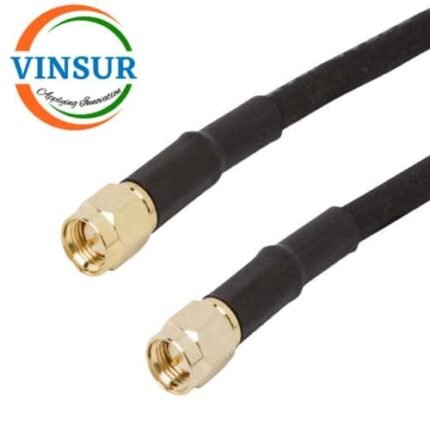

SMA Male Straight to SMA Male Straight for RG-58 Cable of Length 6″ Inch
P/N : VSW250111-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG58 Cable
- SMA Male to SMA Male
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Plug(Male) |
| Orientation 2 (body) | Straight |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 3GHz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG58 |
| Cable Diameter | 4.95mm |
| Frequency Range | DC to 3Ghz |
| Impedance | 50 Ω |
| Length | 6 Inch |
| Temperature Range | -25°C to +70°C |
