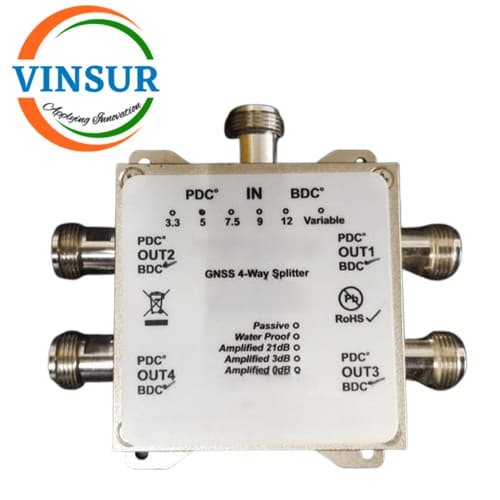

GNSS Signal Splitter (1-4 Ports N Female)
P/N : VSW-GNSS-4S
- GNSS Signal Splitter
- 1-4 Ports
- N Female
- Frequency(MHz)Â – 1150-1616
Click Here to get Data Sheet
For Orders & Info
Description
| PARAMETER | SPECIFICATION | MIN. | NOMINAL | MAX. | UNIT | ||
| Frequency range | Remote unit antenna | 1150 | 1616 | MHz | |||
| I/O impedance | Input, all output
ports |
50 | Ω | ||||
| Gain | 0dB
Amplified (Normal) |
In- Output ports, Unused Ports – 50Ω | -1 | 0 | 1 | dB | |
| 19.5 | 21 | 22. | dB | ||||
| 6.5 | 7.5 | 8.5 | dB | ||||
| Input voltage standing wave ratio | 2.0:1 | – | |||||
| Output voltage standing wave ratio | 2.0:1 | – | |||||
| Noise Figure- Amplified | 1.5 | dB | |||||
| Group Delay Flatness | 1 | ns | |||||
| Operating Temperature | -40 | 85 | ℃ | ||||
| DC input | DC | 3.3 | 5 | 16 | VDC | ||
| Current | 16 | 16 | |||||
