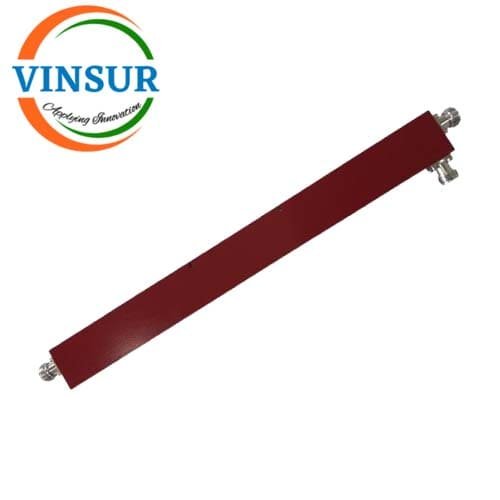

RF Directional Coupler (200W , 40dB, 100-1000MHz , N Female)
P/N : VSW260040-DC
- RF Directional Coupler
- 50Ω
- NÂ Female
- Coupling(dB) – 40
- Frequency (MHz) – 100-1000
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL SPECIFICATIONS | |
| Freq(MHz) | 100-1000MHz |
| Coupling(dB) | 40 |
| Accuracy(dB) | ±2.5@138-1000MHz
0/+4.0@100-138MHz |
| Insertion Loss(dB) | ≦0.2 |
| Isolation(dB) | ≧52 |
| VSWR | ≤1.30 |
| Power(W) | 200 (average) |
| Impedance | 50 ohm |
| Connector | N-female |
| Color | Red or black |
| Temp(deg) | -35~+65 |
| Application | IP60 |
