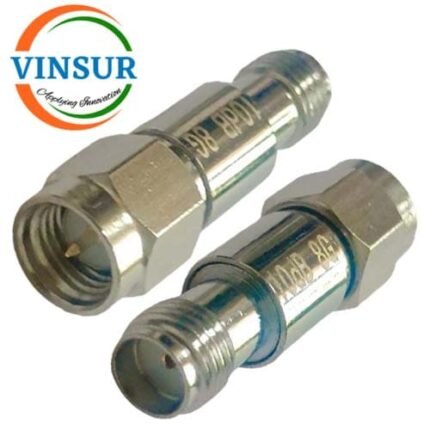

RF Fixed Attenuator (2W 10dB DC-8GHz SMA Male to Female)
P/N : VSW250057-ATT
- RF Fixed Attenuator
- 50Ω
- SMA Male to Female
- 2WÂ
- Attenuation(dB) – 10dB
- Max Frequency(GHz)Â – DC-8
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Adapter Side 1 Series | SMA Plug (Male) |
| Adapter Side 2 Series | SMA Jack(Female) |
| Impedance (Ohms) | 50 |
| Power Input | 2Watt |
| Attenuation | 10dB |
| Attenuation Accuracy | Â 0.5 dB |
| VSWR | ≤ 1.25(Max) |
| Max Frequency               | DC to 8GHz |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +125°C |
