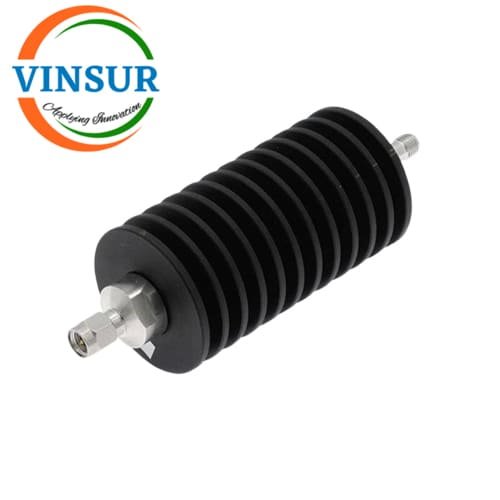

RF Fixed Attenuator (50W 30dB DC-18GHz SMA Male to SMA Female)
P/N : VSW260038-ATT
- RF Fixed Attenuator
- 50Ω
- SMA Male to Female
- 50WÂ
- Attenuation – 30dB
- Max Frequency(GHz)Â – DC-18
Click Here to get Data Sheet
For Orders & Info
Description
| TECHNICAL & MECHANICAL SPECIFICATIONS | |
| Freq(MHz | DC-18GHz |
| Attenuation Value | 30 |
| Attenuation Accuracy | ±1.1dB |
| VSWR | ≤1.45:1 |
| Power(W) | 50W@25℃ |
| Impedance | 50Ω |
| Connector | SMA-male to SMA-female |
| Body Materials and Plating | Stainless Steel Passivated |
| Temp(deg) | -55°C~+100°C |
