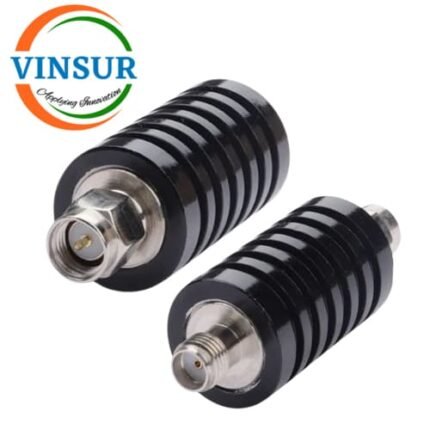

RF Fixed Attenuator (20W 20dB 500KHz ~ 6000MHz SMA Male to SMA bFemale)
P/N : VSW250026-ATT
- RF Fixed Attenuator
- 50Ω
- SMA Male to Female
- 20WÂ
- Attenuation – 20dB
- Max Frequency – 500KHz ~ 6000MHz
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Attenuation(dB) | 20 |
| Accuracy(dB) | ±1.2dB |
| Freq(MHz) | 500-6000MHz |
| VSWR | ≤1.30 |
| Power Rating(W) | 20W |
| Impedance | 50 ohm |
| Connector | SMA Male to SMA Female |
| Colour | Black |
| Operating Tem(℃) | +125℃ to -55℃ |
| CONNECTOR-1 | |
| Contact Material and Plating | Brass, Gold |
| Body Material and Plating | Brass, Nickel |
| CONNECTOR-2 | |
| Contact Material and Plating | Brass, Gold |
| Body Material and Plating | Brass, Nickel |
