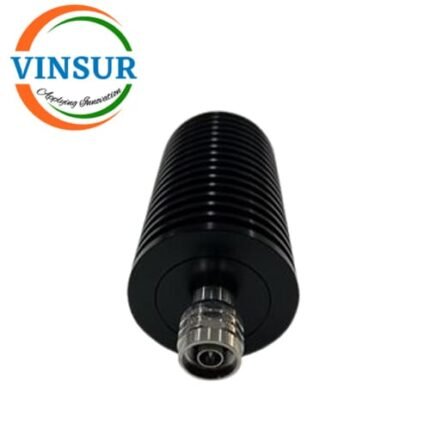

RF Fixed Attenuator(50W DC-3GHz N Male to N Female)
P/N : VSW250019-ATT
- RF Fixed Attenuator
- 50Ω
- N Male to Female
- 50WÂ
- Attenuation(dB) – 3/6/10/15/20/30
- Max Frequency (GHz) – DC-3
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Attenuation(dB) | 3/6/10/15/20/30 |
| Accuracy(dB) | ±0.7 (3/6); ±1.0 (10); ±1.5(15/20/30) |
| Freq(MHz) | DC-3GHz |
| VSWR | ≦1.25 |
| Power Rating(W) | 50W |
| Impedance | 50 ohm |
| Connector | N Male to N Female |
| Colour | Black |
| Operating Tem(℃) | -55~+125 |
| CONNECTOR-1 | |
| Contact Material and Plating | Brass, Nickel |
| Body Material and Plating | Brass, Nickel |
| CONNECTOR-2 | |
| Contact Material and Plating | Brass, Nickel |
| Body Material and Plating | Brass, Nickel |
