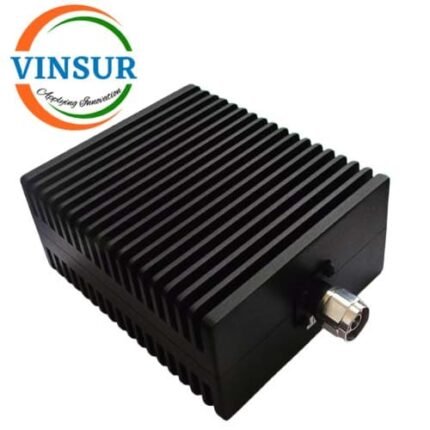

RF Fixed Attenuator(50W DC-4GHz N Male to N Female)
P/N : VSW250053-ATT
- RF Fixed Attenuator
- 50Ω
- N Male to Female
- 50WÂ
- Attenuation(dB) – 3/6/10/15/20/30
- Max Frequency (GHz) – DC-4
Click Here to get Data Sheet
For Orders & Info
Description
| TECHNICAL & MECHANICAL SPECIFICATIONS | |
| Power | 50W |
| Frequency(GHz) | DC-4GHz |
| VSWR | ≦1.25 |
| Attenuation (dB) | 3/6/10/15/20/30 |
| Accuracy(dB) | ±0.7 (3/6); ±1.0 (10); ±1.5(15/20/30) |
| Impedance(ohm) | 50 |
| RF Connector | N(M)-N(F) |
| Working Temp(deg) | -55~+125 |
| Color | Black |
