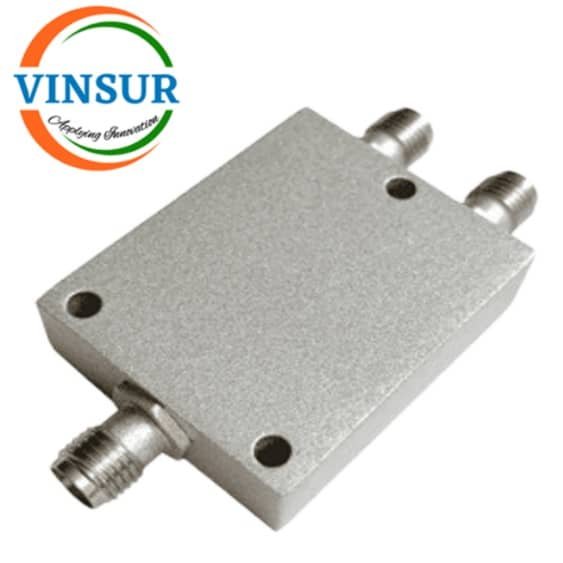

RF Power Divider (2-Way 0.5-18GHz SMA Female)
P/N : VSW-2WPS-18G-SMAF
- RF Power Divider
- 2-Way
- SMA Female
- Impedance – 50Ω
- Frequency (GHz) – 0.5-18
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Frequency | 0.5-18GHz |
| Impudence | 50Ω |
| Temperature Range | -40ºC to +85ºC (operating) |
| -55ºC to +125ºC (storage | |
| Phase Tracking |  ± 7º maximum |
| ± 3º typical | |
| Amplitude Tracking | ± 0.7 dB maximum |
| ± 0.2 dB typical | |
| Power | 10 Watts average (divider port)
0.25 Watts average (combiner ports) |
| Insertion Loss
(above 3 dB split) |
1.9 dB maximum |
| 0.2 dB typical @ 500 MHz | |
| 0.6 dB typical @ 6 GHz | |
| 1.4 dB typical @ 18 GHz | |
| Isolation | Â 18 dB minimum 500 MHz-6 GHz |
| 15 dB minimum 6-18 GHz | |
| 20 dB typical 500 MHz-6 GHz | |
| 17 dB typical 6-18 GHz | |
| VSWR | 1.6:1 maximum |
| < 1.4:1 typical (divider port) | |
| < 1.3:1 typical (combiner ports) | |
| Connector Type | SMA Female |
