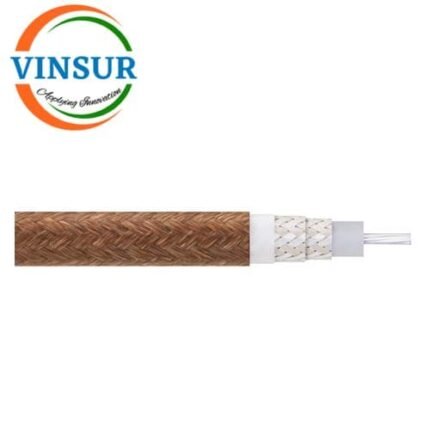

RG225 Coaxial Cable
P/N : VSW-RG-225-CA
- RG225 Coaxial Cable
- 50Ω
- Max Frequency (GHz) -DC to 10GHz
Applications:
- Military & Defense
- Laboratory & Testing
- Transmitters & Receivers
Click Here to get Data Sheet
For Orders & Info
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Size |
| Inner Conductor | Copper, Silver, 7 Strands | 0.094 in [2.39 mm] |
| Dielectric Material | PTFE | 0.285 in [7.24 mm] |
| First Shield | Silver Plated Copper Braid 90% coverage | – |
| Second Shield | Silver Plated Copper Braid 90% coverage | 0.341 in [8.66 mm] |
| Jacket | PTFE (FG), Brown | 0.43 in [10.92 mm] |
| ELECTRICAL SPECIFICATIONS | |
| Impedance | 50Ohms |
| Frequency Range | 10GHz |
| Velocity of propagation | 70 % |
| Operating voltage (AC) | 3700 Vrms |
| Nominal capacitance | 29.4 [96.46] pF/ft [pF/m] |
| MECHANICAL SPECIFICATIONS | |
| Diameter | 0.43 in [10.92 mm} |
| Weight | 0.1725 lbs/ft [0.26 kg/m] |
