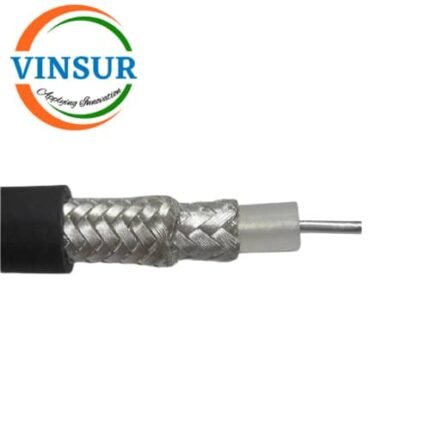

RG223 Coaxial Cable
P/N : VSW-RG223-CC
- RG223 Coaxial Cable
- 50Ω
- Max Frequency (GHz) -DC to 12.4GHz
Applications:
- Radio & Broadcast: Used in radio communication systems, antenna feeders.
- Data & Networking: Applied in GPS, LAN/WAN links, and computer data transmission.
- Test & Measurement: Utilized for test benches, equipment interconnects.
Click Here to get Data Sheet
For Orders & Info
Description
| CABLE CONSTRUCTION | ||
| Description | Material | Dimensions (mm) |
| Centre Conductor | Solid Silver Plated Copper | 0.89 ± 0.02 |
| Dielectric | Solid PE | 2.95 ± 0.1 |
| Braid 1 | Silver Plated Copper | 3.50 (95%) |
| Braid 2 | Silver Plated Copper | 4.10 (92%) |
| Outer Jacket | PVC Black | 5.30 |
| ELECTRICAL SPECIFICATIONS | |
| Frequency | 4GHz |
| Impedance | 50Ω |
| V.S.W.R | 1.2 Max. @ 3 GHz |
| Capacitance | 101 pF/m |
| Min. Bending Radius | 30 mm |
| Nominal Weight | 0.053 Kg/m |
| Signal Delay | 5.03 ns/m |
| Insulation Resistance | ≥ 1 x 108 MΩ/km |
| Max. Operating Voltage | 2.5kVrms |
| Temp. Range | -25°C to +85°C |
