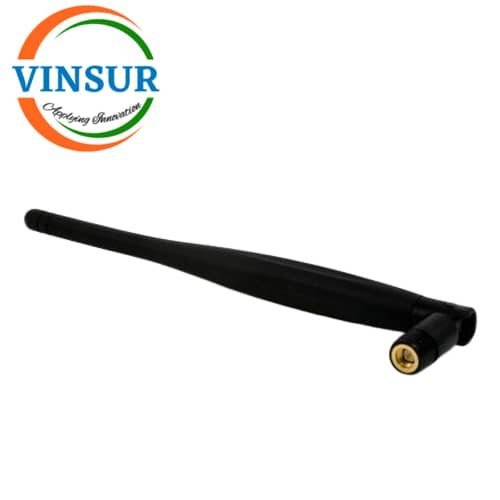

Rubber Duck Antenna(2G/3G/4G)
APPLICATIONS:Â Â
- Wireless Routers:Â Boosting Wi-Fi coverage in homes or offices.
- GSM/LTE Modems:Â Improving cellular data speeds for M2M and IoT devices.
- Handheld Radios:Â Replacement antennas for walkie-talkies and scanners.
- Smart Home Hubs: Ensuring stable connections for security panels and gateways.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 800 – 960 / 1700 –1930 / 2100 –2500MHz |
| Gain | 5 dBi |
| VSWR (Max.) | ≤ 2 |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Horizontal Beam Width | 360° |
| Vertical Beam Width | 25° |
| Power Handling | 10 W |
| Connector | SMA (Male) |
| MECHANICAL SPECIFICATION | |
| Dimensions | 180 x 14 mm |
| Housing | ABS Black |
| Weight | < 100 grams |
| ENVIRONMENTAL SPECIFICATION | |
| Operating Temperature | -30°to +60°C |
| Humidity | 5 – 95% |
