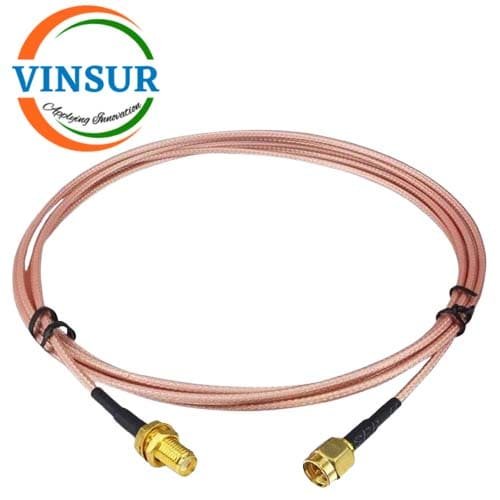

SMA Male Straight to SMA Female Straight Bulkhead for RG316 Cable of Length 1M
P/N : VSW260007-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG316 Cable
- SMA Male to SMA FemaleÂ
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | SMA |
| Gender 2 | Jack(Female) |
| Orientation 2 (body) | Straight |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 6GHz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG316 |
| Cable Diameter | 2.49 ±0.1 |
| Impedance | 50Ω ±2Ω |
| Frequency | DC to 6GHz |
| Length | 1Meter |
| Operating Temperature | -55°C to +200°C |
