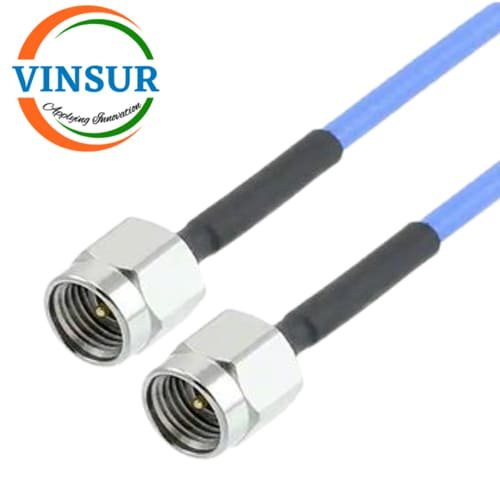

SMA Male Straight to SMA Male Straight for RG402 T-flex Cable of Length 500mm
P/N : VSW250172-CA
- RF Cable Assembly
- SMA Cable Assembly
- SMA to SMA Cable Assembly
- RG402 T-Flex Cable
- SMA Male to SMA MaleÂ
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | SMA |
| Gender | Plug (male) |
| Orientation1 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| RF Series 2 | SMA |
| Orientation 2 (body) | Plug (male) |
| Gender 2 | Straight |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Impedance | 50 Ω |
| Frequency | DC-18GHz |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | RG402 T-flex |
| Cable Diameter | 0.160’’ |
| Suitable for frequencies | up to 34 GHz |
| Cable Length | 500MM |
| Weight (lbs./ft) | 0.033 (0.049kg/m) |
| Temperature rating | -65°C to +125°C |
