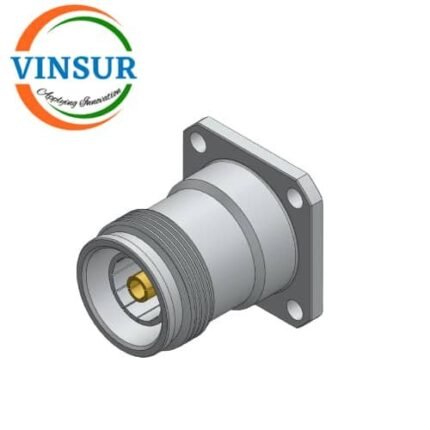

VSW-4.3-10-FS-4H-CN — RF CONNECTORES – 50 OHMS , 4.3-10 FEMALE , STRAIGHT , 4-HOLE FLANGE MOUNT CONNECTOR
Features and Benefits:
- Excellent low PIM performance
- Waterproof to IP68 when mated
- Threaded coupling mechanism ensures secure mating
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Type | 4.3-10 |
| Orientation | Straight |
| Termination Style | PCB Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Mounting Features | 4-Hole Flange |
| Insulator Material | PTFE |
| VSWR | ≤1.25 |
| Max Frequency (GHz) | 6 |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
