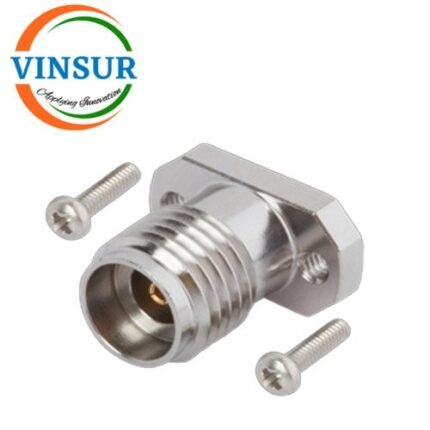

11I213E5-44 — RF CONNECTOR – 50 OHMS,K(2.92MM) FEMALE PCB CONNECTOR SS BODY 40GHZ
Applications
- Telecommunications:Â Base stations, antenna arrays for 5G/6G, data centers, and high-speed networks.
- Military & Aerospace:Â Missile guidance, radar systems, electronic warfare, satellite ground stations, and airborne communication.
- Test & Measurement:Â Network analyzers, test fixtures, attenuators, and high-frequency system calibration.
- Industrial Automation & Robotics: High-speed data links in demanding environments.
- Medical:Â High-reliability connections in advanced medical devices.
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| Family | Solderless |
| Gender | Jack (Female) |
| Orientation (Body) | Straight |
| Coupling | Threaded |
| Mounting Type | PCB Vertical Launch |
| Body Style | 2 Hole |
| Number of Ports | Single |
| Termination Style | Solder-free |
| Finish | Passivated |
| ELECTRICAL | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| MECHANICAL | |
| Mating Cycles | 500 |
| Mating Torque | 7 – 10 in – lbs |
| Intermateability | SMA |
